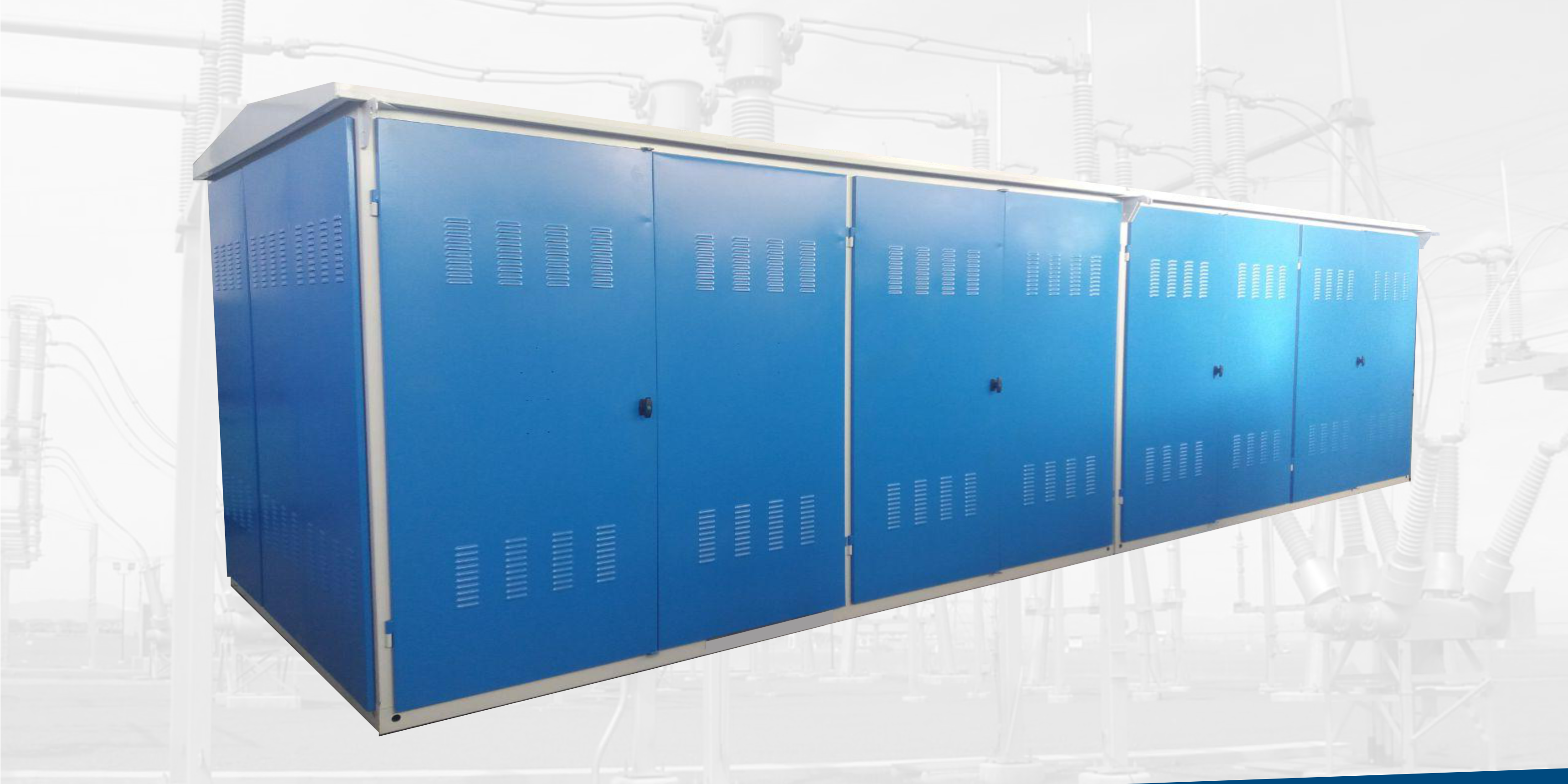

Complete transformer substations urban GKTP 160…630 kVA 6,10/0,4 kV
Urban complete transformer substation with a capacity from 160 kVA to 630 kVA, a voltage of HV 6 and 10 kV, a voltage of HH 0.4 kV is designed for receiving, converting and distributing electric energy and three-phase alternating current of 50 Hz frequency, produced for the needs of the national economy, for power supply of residential and public buildings in cities.
Climatic version of KTP-U1; placement category 1 according to GOST 15150 and GOST 15543.1.
Operating conditions:
altitude above sea level no more than 1000 m;
ambient temperature from plus 40C to minus 40C;
KTP can be made single-transformer, double-transformer, single-row, double-row in the left and right versions. KTP are equipped with oil or dry transformers.
2ГКТП
